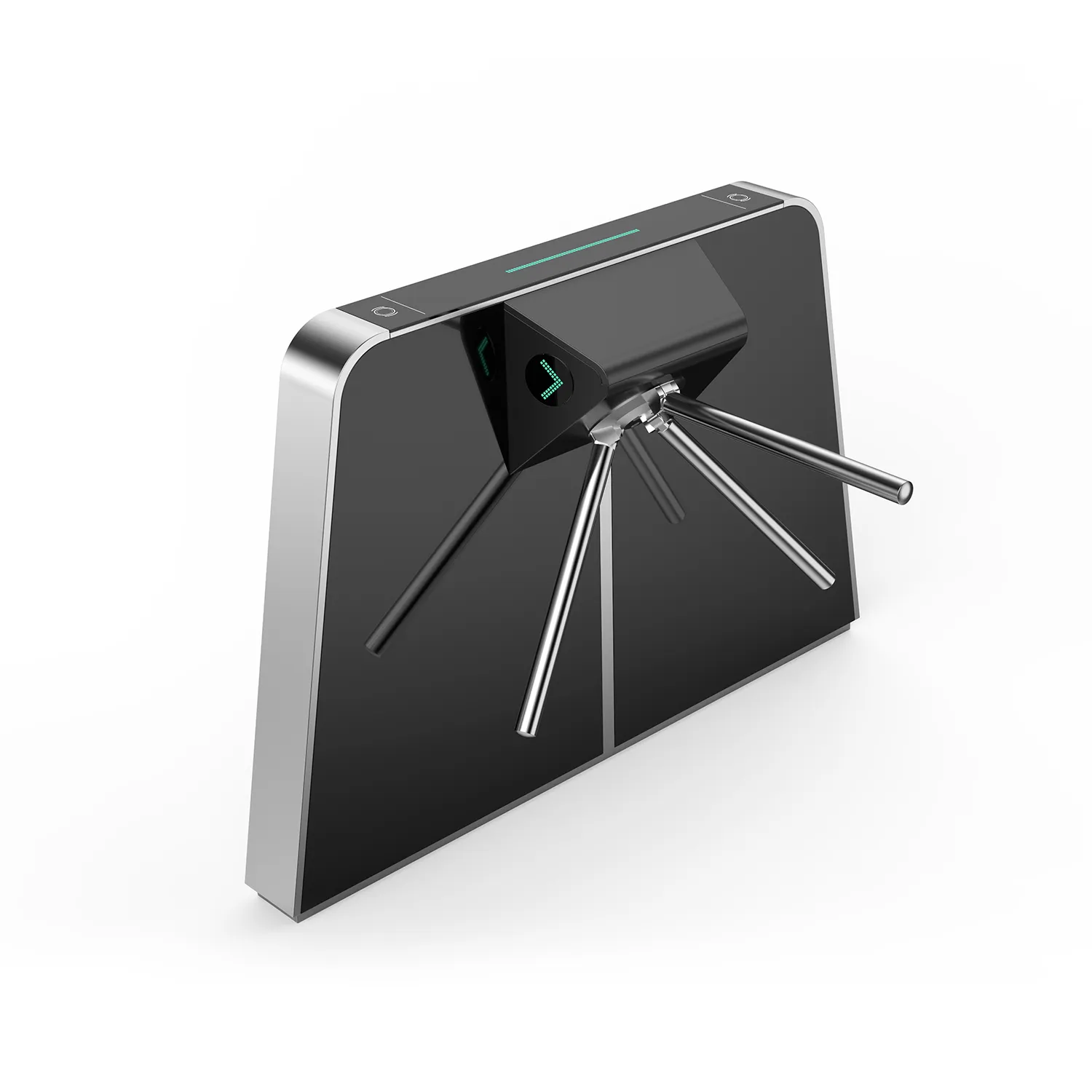

FJC-Z3629 Automatic Tripod Turnstile
FJC-Z3629
The FJC-Z3629 is an automatic tripod turnstile design to pursue the fashion needs by the market. Its shell is made of carbon steel powder and 304 stainless steel, and inherits the classic trapezoidal handrail design, and the unique marquee design makes the entire turnstile look more special. The tripod uses multiple surface treatment technologies, which has plentiful layers, and is simple but extraordinary. A gentle push starts the arm revolving ensuring a smooth operation and the DC brushless motor allows the rotation speed to be adjusted to suit the situation. It can be perfectly blended into high-grade and fashionable building environments, greatly showing elegant and fashionable charm.
Stable and Reliable Operation
● Reliable pedestal turnstile with three arms.
● Uses the brushless DC motor, which can work smoothly and stably.
● Decelerate and stop buffering automatically when the motor is to be in place.
● Use self-centering mechanism to ensure complete rotation into the home position.
● 32-bit ARM processor, greatly improve the operation speed and stability of the system.
Unique Functional Design

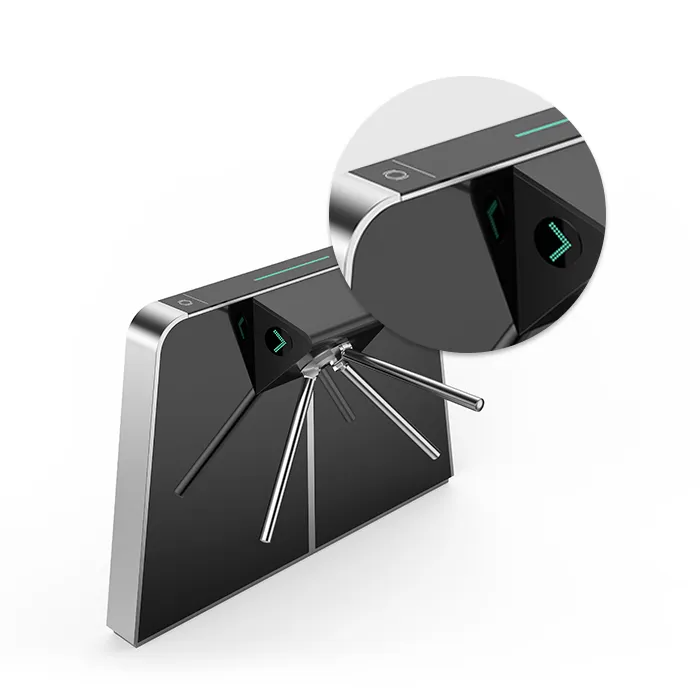

● Marquee design makes it more special.
● Self-checking after power-on.

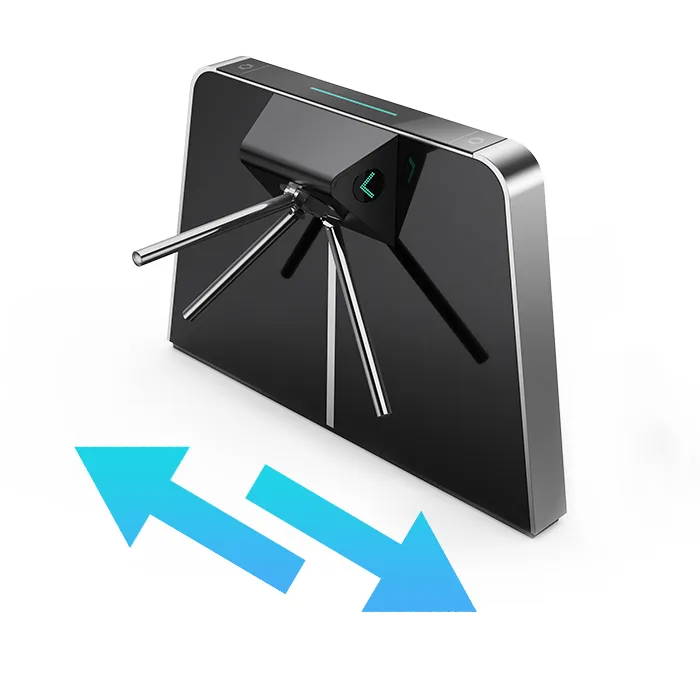

● One or two way passage adjustable.
● Sound and light prompt and alarm functions.
● Automatic reset function.
● Automatic locking lever.
● Counting function.
Reliable Safety Measures
● Integrate with fire alarm protection.
● Multiple input and output ports, can be configured to user requirements.

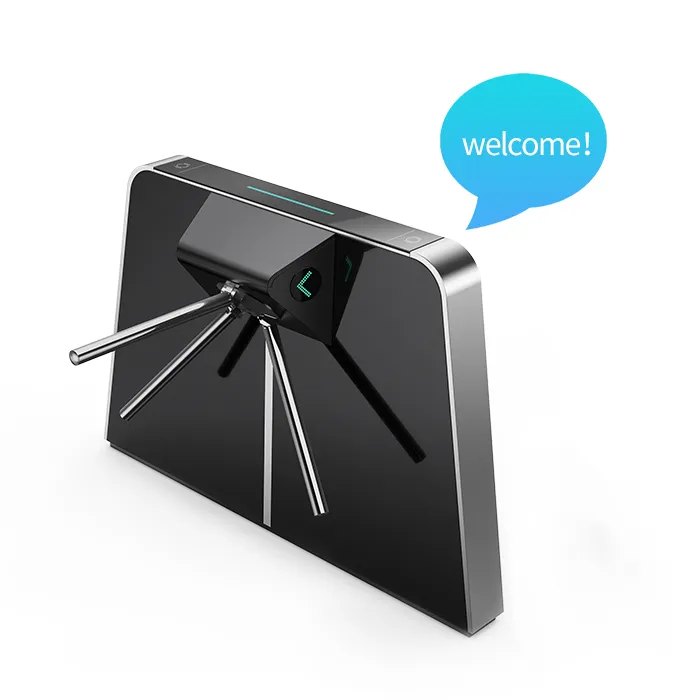

● Support voice customization broadcasting for different languages.
● Integrated with ticketing systems, face recognition system, IC card , QR code, ID card , and elevator control systems.
● The main controller can integrate voice broadcast, voice control, brushless DC motor control, RS485 bus, TCP/IP network interface and other functions.
Installation and Maintenance
● Modular design makes the structure simpler and easier to install.
● Unified standard external electrical interface.
● Support multiple gate opening signal inputs.
● Replacement time of core components is short, meeting the needs of rapid operation and maintenance implementation.
Specifications
| Parameter | FJC-Z3629 |
|---|---|
| Product Model | FJC-Z3629 |
| Frame Material | Galvanized plate and 304 stainless steel |
| Dimension (L*W*H) | 1,433*136*980mm |
| Lane Width | 500-550mm |
| Access Speed | Normally closed: 30 persons/minute Normally opened: 60 persons/minute |
| MFCB | ≥5 million times |
| Working Voltage | AC 220V/110V±10% 50/60Hz |
| Total Power | 50W |
| Communication Protocol | RS485 or TCP/IP |
| Working Temperature | -15℃ to +70℃ |
| Relative Humidity | ≤95%, no condensation |
| Working Environment | Indoor and outdoor |
